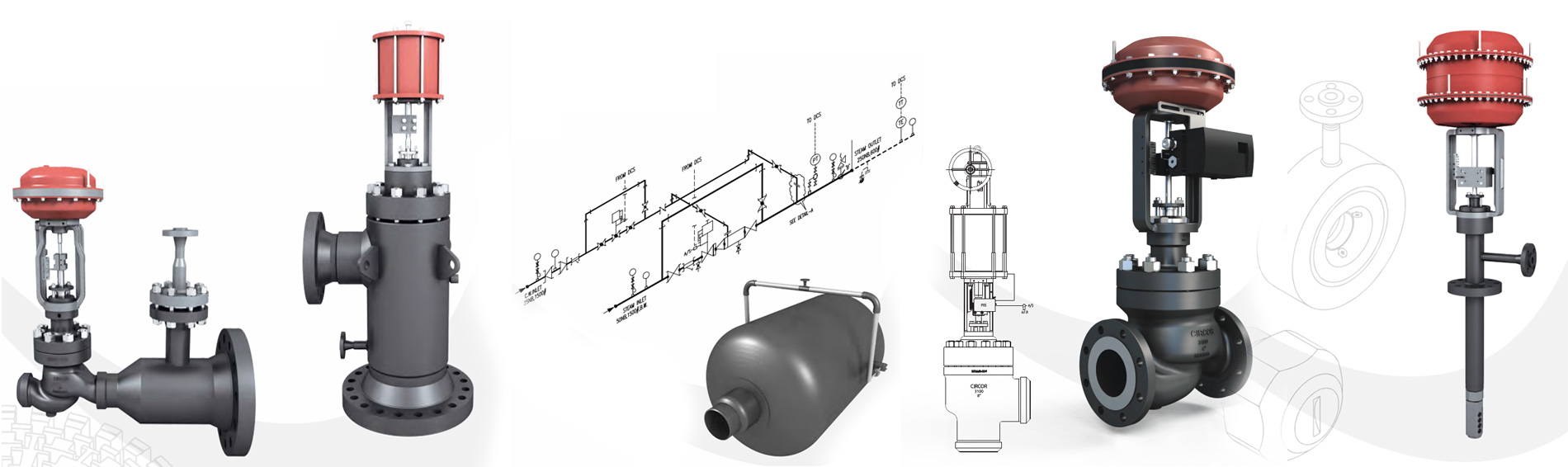

CIRCOR India |
Control Valves
- Type - Globe & Angle Control valves Globe 3 Way Valves
- Specification - 0.5” – 16” ANSI 150# - 2500#
- Material - Carbon Steel, Chrome Moly, Stainless Steel
|
|
Steam Conditioning valves
- Type - Globe & Angle Type PRDS/SC/TB valves
- Specification - 1” to 30” ANSI 150# to 4500#, Dual Rated
- Material -Carbon Steel, Chrome Moly, Stainless Steel
|
|
De-superheaters
- Type - Low Cv / Kv Inline DSH,Multi nozzle DSH
- Specification - Mounting Flanges:3” or 4” ANSI 150#- 2500#
- Material - Carbon Steel, Alloy Steel
|
|
Skid, Dump Tube
- Type - Pressure Reducing Station, Desuperheating Station, Pressure Reducing & Desuperheating Station (PRDS), Dump Tube
- Specification - Size: 1” to 30”, ANSI 150# to 4500#, Dual Rated
- Material - Carbon Steel, Chrome Moly, Stainless Steel
|
|
Regulator
- Type - Pressure Regulator, Temperature Regulators
- Specification - Size: 1⁄4”‐4”, ANSI 125# to 600#
- Material - Cast & Ductile Iron, Bronze, Cast steel, Stainless Steel, Aluminium
|
|
| |

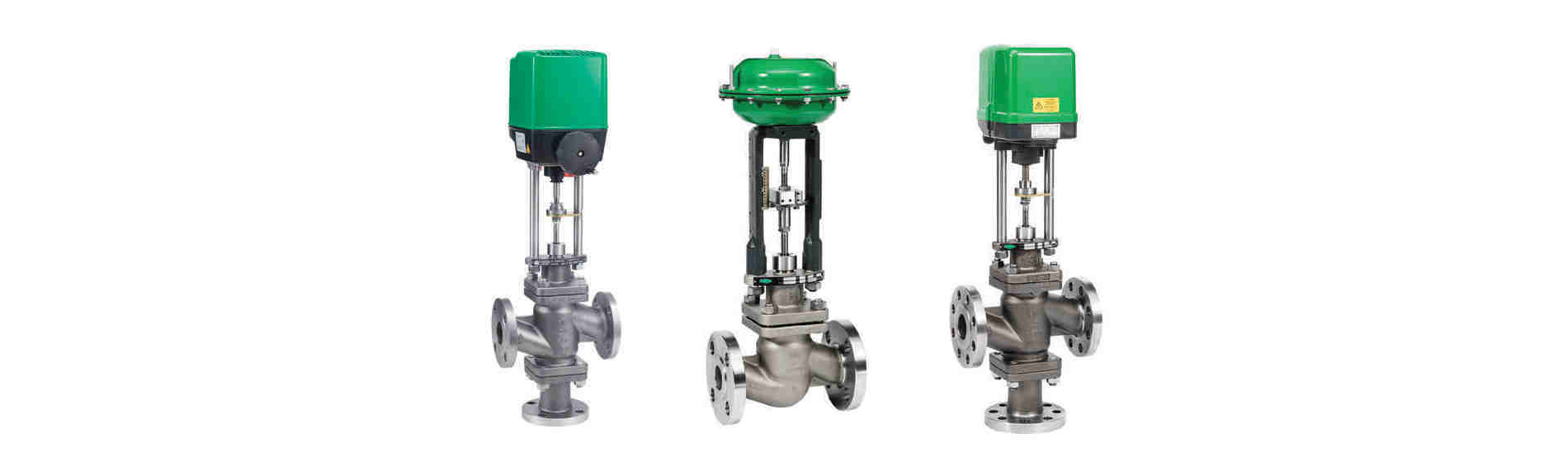

Regeltechnik Kornwestheim (RTK) |
Safety Valves
- Type - 2-way - Globe control valve, 3-way control valve
- Specification - ½”-12” / DN15-DN400 150#-900# / PN16-PN160
- Material - Carbon Steel Chrome Moly Stainless Steel
|
|
Regulators
- Type - Pressure regulators for Gas & Steam
- Specification - DN15-DN100 PN16-PN40
- Material - GP240GH, DIN 1.4404
|
|
| |

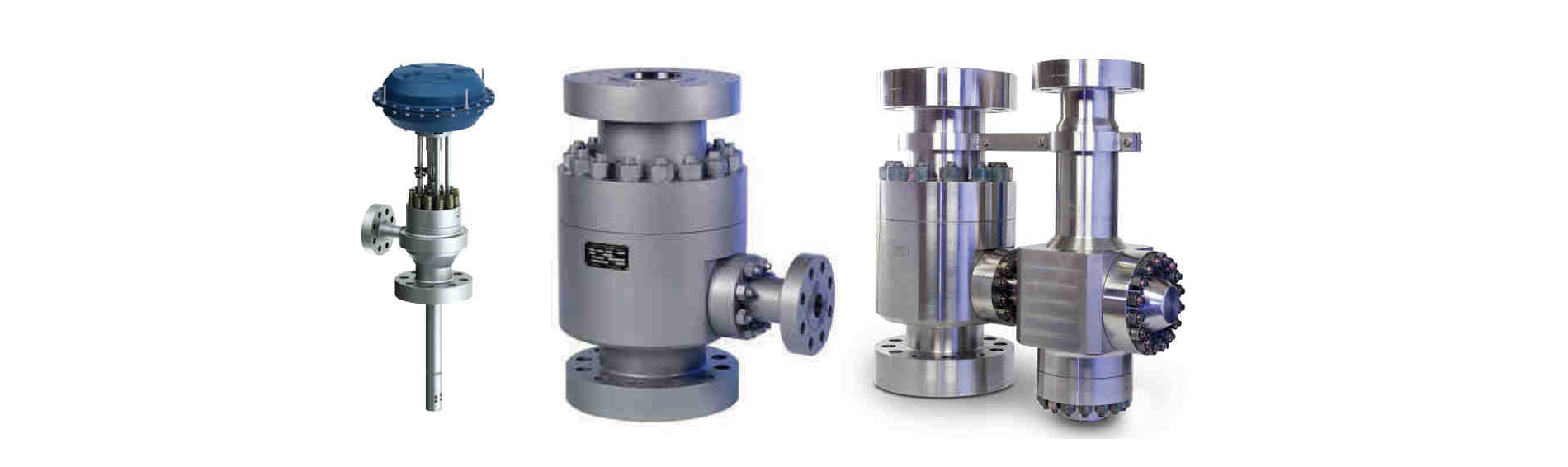

Schroedahl |
Pump Protection Valve
- Type - Cast and Forged type ARVs
- Specification - 1” – 16” ANSI 150# - 2500#
- Material - Carbon Steel, Stainless Steel, Duplex, Super Duplex
|
|
Steam Conditioning Valve
- Type - Angle, Globe SCV
- Specification - Inlet: 1½”- 20” Outlet: 3”- 64” ANSI 150#- 2500#
- Material - Forged Carbon Steel & Forged Chrome Moly
|
|
Back Pressure Valve
- Type - Low Cv / Kv Inline DSH,Multi nozzle DSH
- Specification - Mounting Flanges:3” or 4” ANSI 150#- 2500#
- Material - Carbon Steel, Alloy Steel
|
|
| |
RG Laurence Turbine application valves (RGL) |
| |
Regulators
- Compressor Air Extraction Valve
- Air Extraction Pilot Valve
- Trip Oil Solenoid Valve
- False Start Drain Valve
- Gas Purge Vent Valve
- Gas Purge Block Valve
- Liquid Fuel Stop Valve
- Fuel Nozzle Purge Valve
- Atomizing Air Bypass Valve
- Generator Bearing Hydrogen Shutoff Valve
- Generator Bearing CO2 Purge Valve
|
|
| |

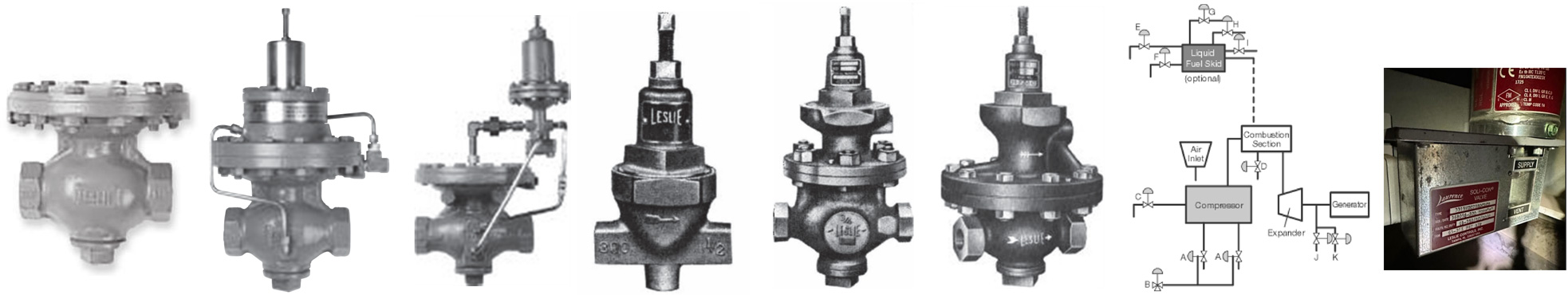

LESLIE CONTROLS |
 |
Regulators
- Type - Pressure Regulators, Temperature Regulators
- Specification - ¼”-4” Press – 200,250 psig to 1000 psig
- Material - Cast & Ductile Iron,Bronze, Cast steel, Stainless Steel, Aluminum
|
|
Safety Valves
- Type - Cryogenic Safety relief valves, Pressure Safety Pilot
- Specification - Up to 400 psig -423°F to +400°F
- Material - Bronze, Stainless steel
|
|
| |
Be Make Valves (Ball / Gate / Globe / Check) |
 |
2 PC Ball Valve
- Size : 1" to 8" (DN25- DN 200)
- Type : Two Piece, Flanged End & Floating Ball.
- Rating : Class150, Class 300 & Class 600.
- Face to Face : ASME B 16.10
- Pressure & Temperature Rating : ASME B 16.34 ( Standard Class)
- Flange Standard Conformity : ASME B 16.5
|
|
 |
3 PC Ball Valve
- Size : 1" to 8" (DN25- DN 200)
- Type : Two Piece, Flanged End & Floating Ball.
- Rating : Class150, Class 300 & Class 600.
- Face to Face : ASME B 16.10
- Pressure & Temperature Rating : ASME B 16.34 ( Standard Class)
- Flange Standard Conformity : ASME B 16.5
|
|
 |
Trunnion Mounted Ball Valves
- Size : 8" to 400 (DN 200 - DN 400)
- Type : Two Piece, Flanged End & Trunnion Mounted
- Rating : Class 150
- Face to Face : ASME B 16.10
- Pressure & Temperature Rating : ASME B 16.34 ( Standard Class)
- Flange Standard Conformity : ASME B 16.5
|
|
|
